IoT Gateway with Built-In Dashboards for Instant Monitoring! - No Coding Needed
Connect, Configure, Monitor – It’s That Simple!
✔ Connect – Power up and link your IoT gateway.
✔ Configure – Set up Modbus RS485 devices effortlessly via WiFi.
✔ Monitor – Stream real-time data over MQTT or HTTPS to your platform.
🔹 WiFi-Enabled | 🔹 Modbus RS485 Input | 🔹 Secure MQTT/HTTPS Output 🔹 Customizable Dashboards for Instant Insights | 🔹 Tandem Autodesk Integration
- Network
- Server
- Protocol
- Diagnostics
- Firmware

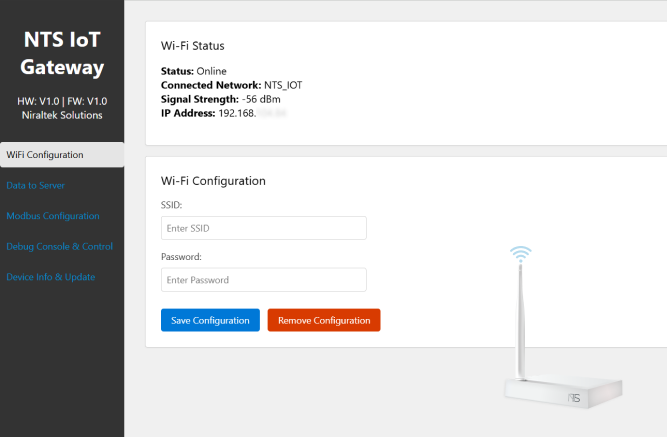

Network Configuration
- Step 1: Access the Network Settings
Open a web browser, enter the device's IP address and navigate to Wi-Fi Configuration. - Step 2: Configure the Connection
For Wi-Fi, enter the SSID and Password, then click Save Configuration. For Ethernet, connect a LAN cable. - Step 3: Verify Connection
Check the Wi-Fi Status or IP Address. If there’s an issue, reset and reconfigure the network.

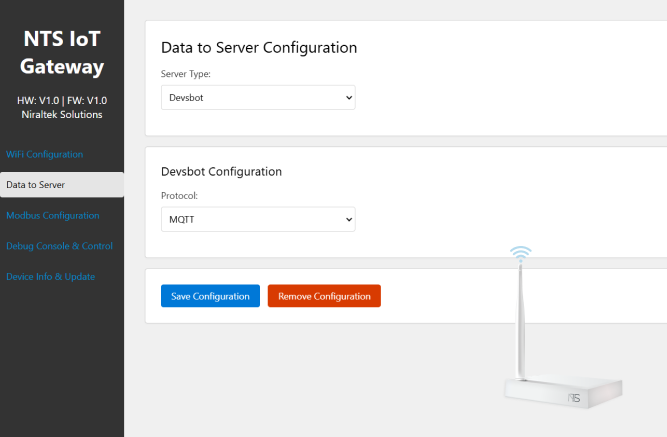

Cloud & Server Integration
- Step 1: Access Server Configuration
Open the NTS IoT Gateway’s web interface and navigate to Data to Server. - Step 2: Select Server Type & Protocol
Choose the Server Type (e.g., DevsBot / Custom ) and select the desired Protocol (MQTT or HTTP). - Step 3: Save & Verify Connection
Click Save Configuration and ensure the connection is active for real-time data exchange.

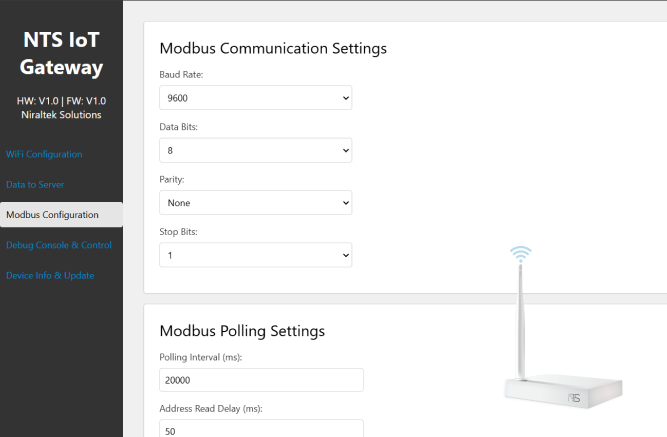

Protocol & Communication
- Step 1: Access Modbus Configuration
Open the NTS IoT Gateway’s web interface and navigate to Modbus Configuration. - Step 2: Set Communication Parameters
Configure Baud Rate, Data Bits, Parity, Stop Bits and Polling Interval for seamless data exchange. - Step 3: Save & Verify Connection
Click Save Configuration and ensure proper communication with connected devices.

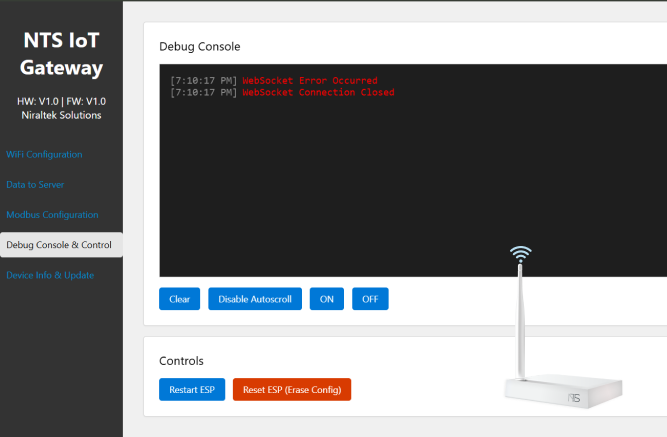

Diagnostics & Logs
- Step 1: Open Debug Console
Access the NTS IoT Gateway’s web interface and navigate to Debug Console & Control. - Step 2: Monitor Logs & Identify Issues
View real-time logs, track errors and analyze system behavior for troubleshooting. - Step 3: Execute Debug Actions
Use Restart ESP or Reset ESP to resolve issues and restore system functionality.

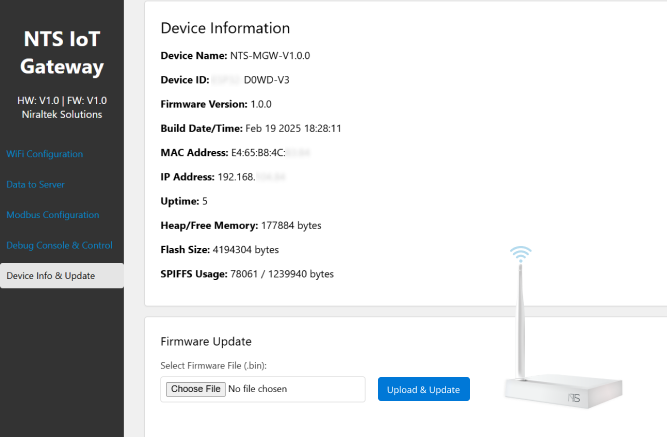

Firmware & Maintenance
- Step 1: Check Device Information
Navigate to Device Info & Update to view firmware version, memory usage, and system details. - Step 2: Upload Firmware Update
Click Choose File, select the firmware .bin file, then press Upload & Update to install the latest version. - Step 3: Maintain System Stability
Perform System Resets or Erase Configurations when needed to ensure optimal performance and security.
Gateway Architecture Diagram
Gateway Configuration
Seamlessly configure and manage your IoT gateway with intuitive settings. Optimize connectivity, data transmission, communication protocols, debugging and updates to ensure peak performance and reliability.
Learn more about NTS IoT Gateway
Browse through our collection of videos to Learn more about the NTS IoT Gateway & how to setup and monitor your account.
